Farm Site

GPS Mapping and Data Layering

Farm Site is a leading mapping and data layering software used by farmers and agricultural businesses. From downloading aerial photos and tracing field boundaries to importing yield data, Farm Site has it all. Farm Site provides unlimited layers for yield mapping, application logs, soil types, soil sample results, tile lines, and more. It works with all major yield monitors, and Farm Works is committed to supporting the widest possible range of equipment. The integration with Farm Trac is especially unique. If importing yield or application data into Farm Site, Farm Trac will convert this spatial data into a field record. No other company does it better with fewer steps!

See the latest enhancements in Farm Works 2008 (version 13)
Major improvements make it faster and easier to learn and use.

Farm Site Features

• Integrates with Farm Trac by adding unlimited mapping and layering capabilities. (Trac is required to use Farm Site.)
• Includes mapping tools for drawing fields, structures, and landmarks.
• Drawing a field can be as easy as clicking on a button, driving around your field, or importing your yield data.
• Download FREE geo-referenced aerial photos, waterways, and roads of your farm from the Internet.
• Calculates acreage automatically.
• Enter or import the results of soil tests and generate a map of the data.
• Print full-color maps, customized with your farm or business's logo if you desire.
• Display layers on top of layers to see the effect of pH levels or soil types on yields, the relationship between different data, differences over time, and more.
• Create averaged, smoothed, or contoured views of any point data, including yield data and soil test data. You have full control over settings that are used to grid or contour the data. Change the size of the grid on which averages are based, change the number of points used in smoothing calculations, or use the default values provided.
• Compatible with a long list of compatible yield monitors.
• Statistical analysis of yield, moisture, wet yield, mass, and other information gathered by your yield monitor.
• Calculate soil sampling locations for any grid size.
• Automatically grid any field to any grid size for soil sampling. This will automatically create grid lines as well as the soil sampling points and can be used to automatically fill in the sample ID for each. Points can be created using several different grid patterns and all points can be moved or deleted. These points can be exported for use with Micro-Trak's® Soil-Trak^TM or with Farm Site Mate.
• Import and export data in several formats including Arc View Shape files and ASCII delimited files.
• Use the coordinate system that fits the job - Degrees, Degrees-Minutes, Degrees-Minutes-Seconds, State Plane, or UTM.
• Zoom in on any feature on a map, or see a bird's-eye view of the entire area. Quickly zoom to a certain farm or field with user defined zooms.
• Use the "Show Me" function to display only selected parts of any data. For example, show only areas with certain soil types, or only yields that fall within a selected range.
• Prescription Map Designer Tool allows application maps to be created for variable rate control.
• Product summary of application maps allows you to see total quantity needed to complete job and approximate cost.

  See new and enhanced features in recent Updates


back to top

Screen Shots
(Click to enlarge)

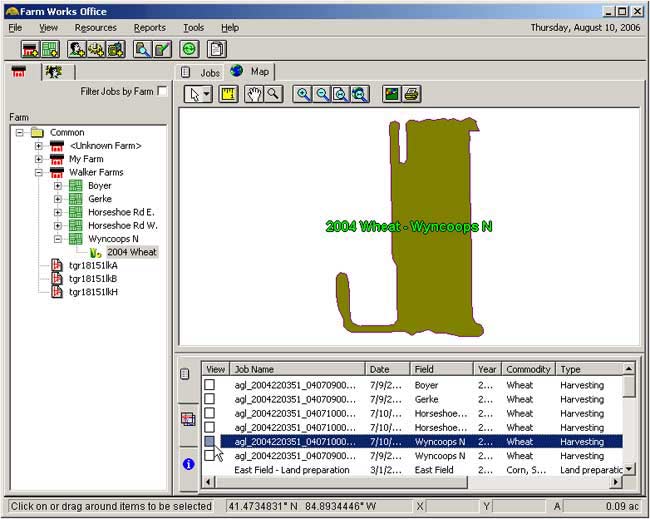

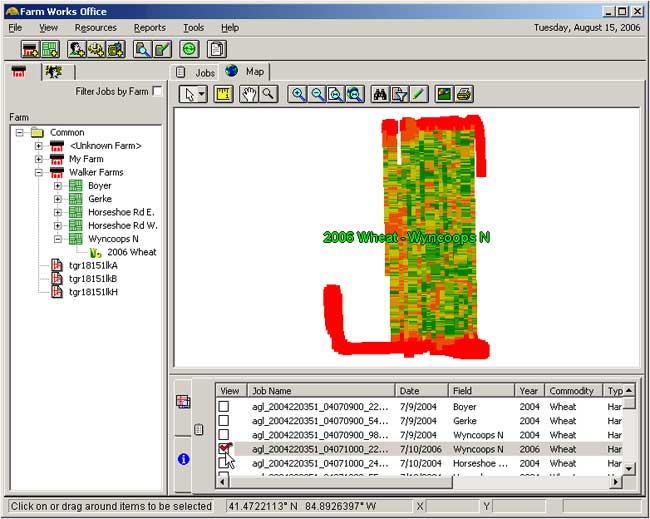

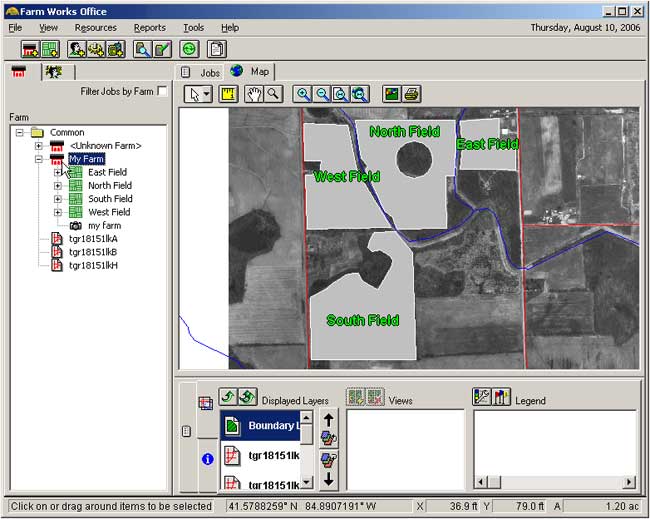

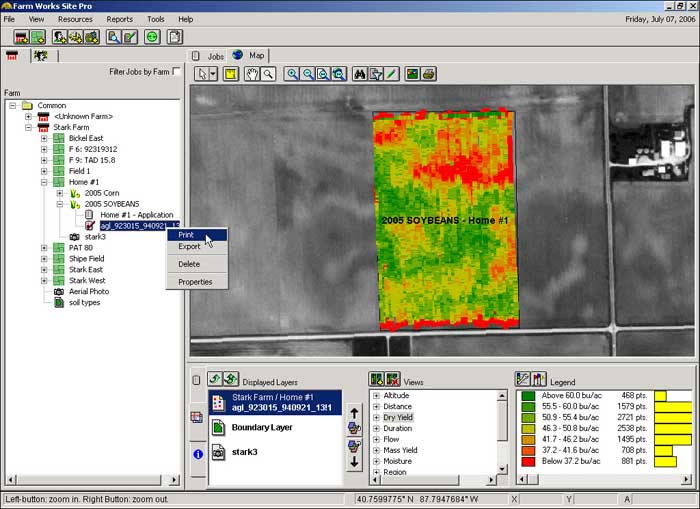

Main Screen	View All Fields on a Farm	Yield Data

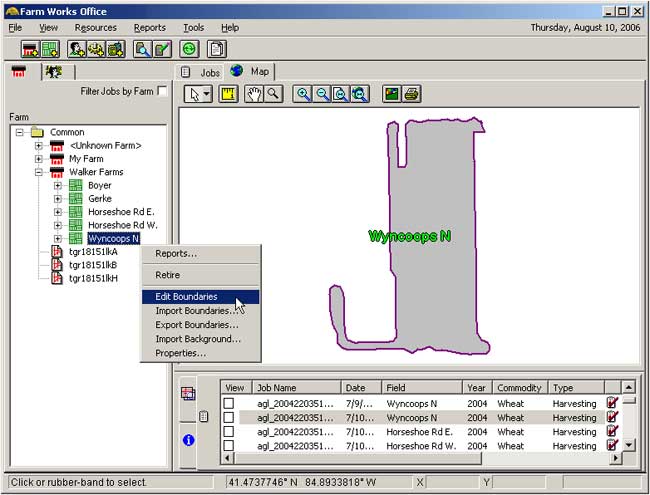

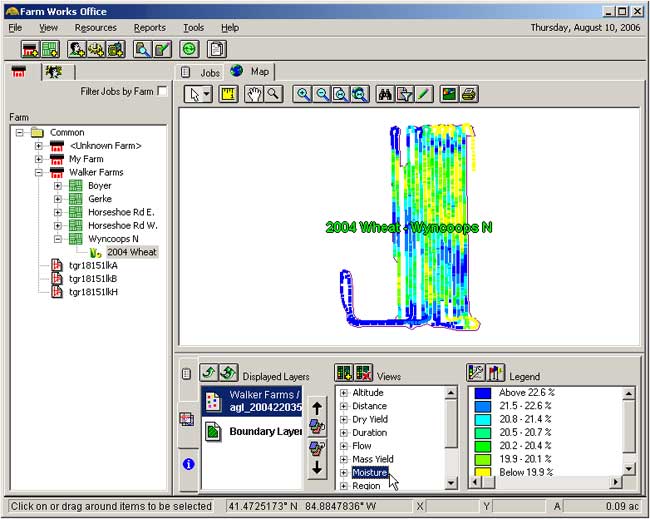

Edit Field Boundaries	Auto Draw Fields	Crop History

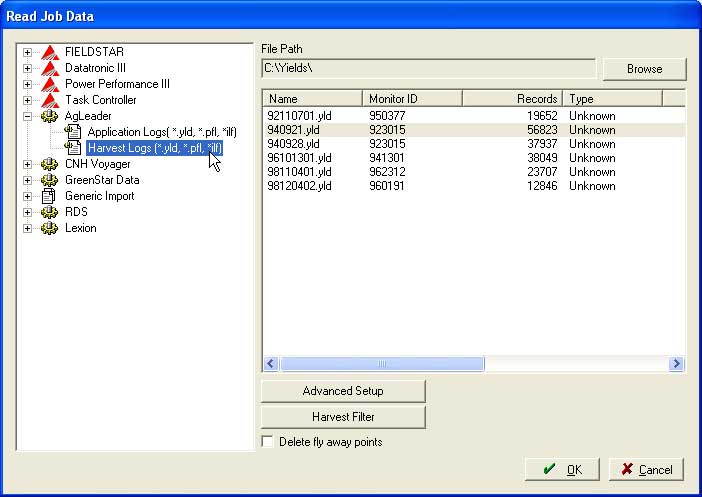

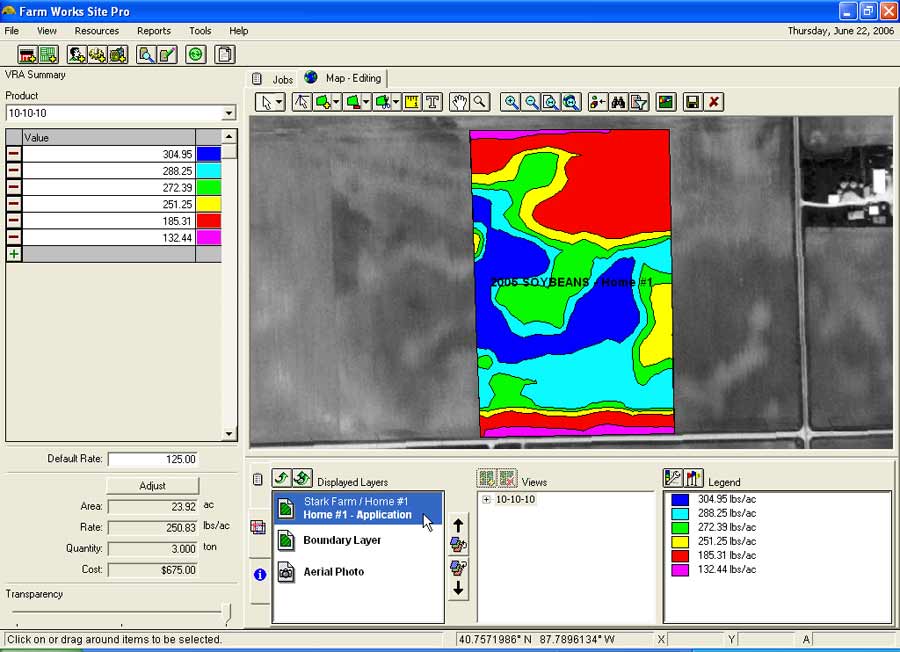

Prescription Map Designer Tool	Import Data Wizard

Farm Site Requirements

• Farm Trac
• Microsoft^© Windows 98 or higher.
• 133 MHz Processor.
• 64 MB Memory.
• 20 MB Hard Drive Space.
